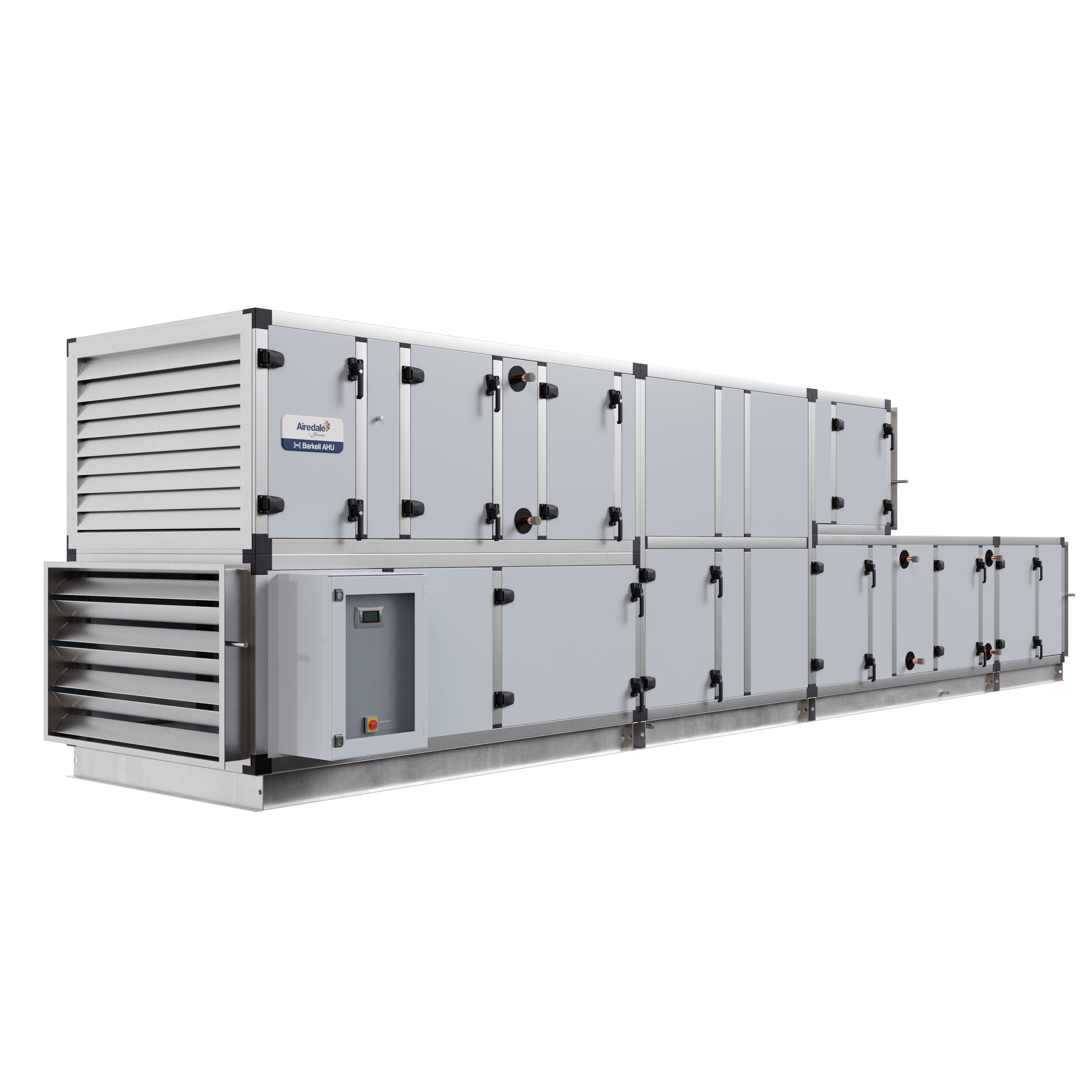

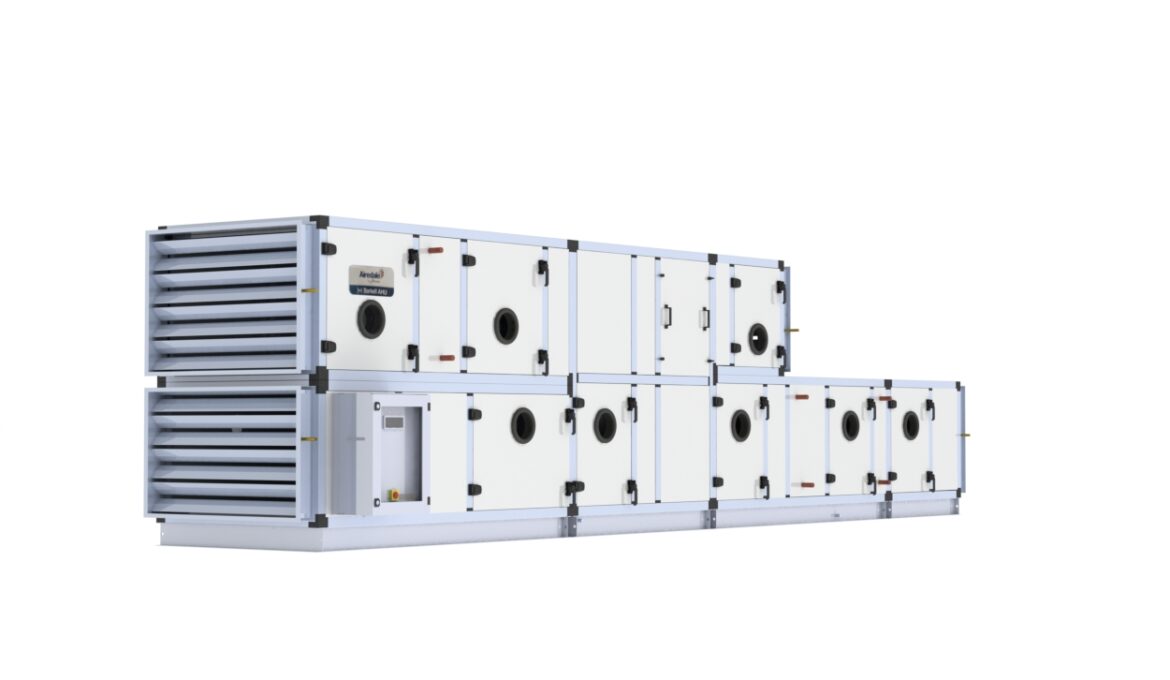

HTM 03-01 Compliant AHU Healthcare Range
Our air handling solutions are expertly engineered to meet the stringent requirements of HTM 03-01 legislation, making them ideal for NHS, private healthcare, and pharmaceutical environments.
Designed in consultation with clients, each unit is tailored to meet individual project needs while ensuring full compliance throughout. Our specialist AHU engineering team provides dedicated guidance on the interpretation and application of HTM 03-01, offering value-engineered solutions where required.
Airedale HTM 03-01 compliant air handling units deliver superior performance, offering exceptional energy efficiency, enhanced thermal insulation, effective condensation control, extended durability and reduced noise levels.
Service corridors are available on external units also, built to suit your specifications.

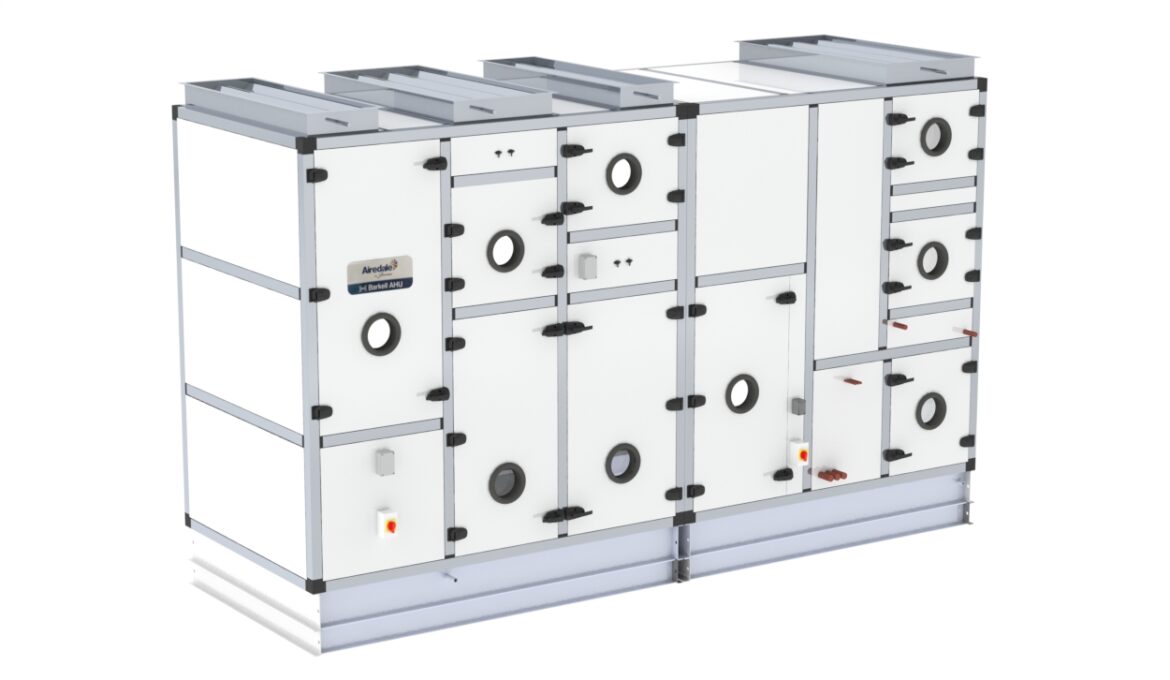

Cabinet Units
We offer cabinet style units, designed with close alignment to HTM 03-01 guidance, and ensure all specifications meet industry expectations and project requirements with careful consideration to legislative standards.
Features of HTM 03-01 Compliant AHUs include:
- Euroclass A fire rating
- Rockwool insulation
- Filtration – filter class ISO 16890
- EC fans as standard
- Stainless Steel and HDX Granite used in construction
- Building Regulations Part L compliant
- EcoDesign directive 2009/125/EC compliant
- BS EN 1886 thermal transmittance and thermal bridging class T2/TB2
- BS EN 1886 casing strength class D2 (D1 available on request)
- BS EN 1886 factory air tightness class L2 (L1 available on request)
- BS EN 1886 site air tightness class L2 (L1 available on request)
Filtration:
- Filtration is one of the most important parts of HTM-03-01. In hospital buildings it is essential to maintain a clean and healthy environment by removing contaminants and reducing the spread of airborne diseases.
Thermal Transfer
- T2/TB2 construction is a requirement of HTM-03-01 and provides a thermal barrier between the air inside and outside of the AHU.
Insulation
- Rockwool is shown to offer significant benefits over other types of insulation in terms of energy efficiency, temperature control, condensation prevention, noise reduction and most importantly fire safety
Construction
- Stainless steel and HDX Granite offer benefits such as corrosion resistance, hygienic properties, improved air quality, cleanability, thermal resistance, strength and durability, and aesthetic appeal.
Controls
- Our inbuilt control solution offers flexible operation, fault detection capabilities, demand response participation, and integration with building automation systems.
